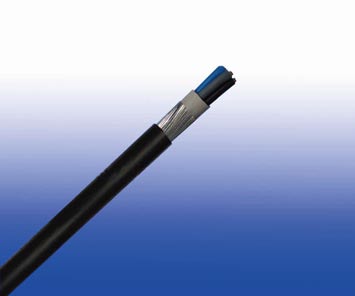

600/1000V XLPE绝缘,PVC护套,铠装电力缆 (2-5芯&多芯)
FGD400 1RVMV-R (CU/XLPE/PVC/SWA/PVC 600/1000V Class 2)
应用
600/1000V XLPE绝缘PVC护套钢丝铠装电力缆主要应用于发电站、公共交通客运系统、机场、石化工厂、酒店、医院、高层建筑等的配线电缆。
标准
标准适应 IEC 60502-1
防火性能
| 阻燃性（单根垂直线缆测试） |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2);CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| 降低火蔓延（垂直安装的成束电缆测试） |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24;VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| 无卤 |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;CEI 20-37/2-1; BS 6425-1* |
| 无腐蚀性气体排放 |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2;CEI 20-37/2-2; BS 6425-2* |
| 最小烟雾释放 |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| 无有毒气体 |
NES 02-713; NF C 20-454 |
注：*表示该标准已经被取代
额定电压
600/1000V

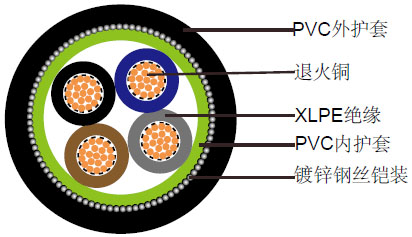

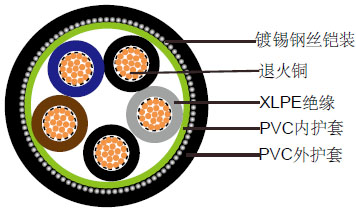

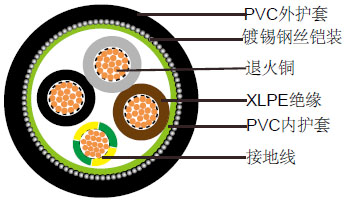

线缆结构
| 导体 |
平纹退火铜，多股绞合符合IEC(EN) 60228 class 2 |
| 绝缘 |
交联聚乙烯复合物 |
| 内护套 |
PVC 复合物 |
| 铠装 |
镀锌钢丝 |
| 外护套 |
热塑性PVC复合物，抵抗紫外线, 耐碳氢化合物、耐油、反啮齿动物和抗白蚁属性可以被作为选项。符合防火性能标准(IEC 60332 - 1,IEC 60332 - 3,UL 1581,UL 1666等)取决于氧指数的PVC复合物的全方位电缆设计。LSPVC也可以根据要求提供。 |
色谱
绝缘颜色遵循标准 BS 7671
|
带接地导体 |
不带接地导体 |
| 2芯 |
- |
棕色， 蓝色 |
| 3芯 |
黄绿线, 棕色，蓝色 |
棕色, 灰色, 黑色 |
| 4芯 |
黄绿线，棕色，灰色，黑色 |
棕色, 灰色, 黑色, 蓝色 |
| 5芯 |
黄绿线，棕色，灰色，黑色, 蓝色 |
棕色, 灰色, 黑色, 蓝色, 黑色 |
| 5芯以上 |
黄绿线, 黑色数根 |
黑色数根 |
护套颜色：黑色或根据客户要求
物理性能和热性能
| 工作温度范围 |
最大90°C对于XLPE |
| |
短路过载温度可达250°C(5s) |
| 最小弯曲半径 |
10 x 总外径 |
结构参数
| 导体 |
FGD400 1RVMV-R |
| 芯数/截面积 |
股数/单丝直径 |
标称绝缘厚度 |
铠装层内外径 |
铠装层直径 |
标称总外径 |
大约重量 |
| mm² |
No./mm |
mm |
mm |
mm |
mm |
kg/km |
| 2 芯 |
| 2×1.5 |
7/0.53 |
0.7 |
8.5 |
0.9 |
13.9 |
350 |
| 2×2.5 |
7/0.67 |
0.7 |
9.3 |
0.9 |
14.7 |
400 |
| 2×4 |
7/0.85 |
0.7 |
10.4 |
0.9 |
15.8 |
475 |
| 2×6 |
7/1.04 |
0.7 |
11.5 |
0.9 |
16.9 |
560 |
| 2×10 |
7/1.35 |
0.7 |
13.4 |
1.25 |
19.5 |
810 |
| 2×16 |
7/1.70 |
0.7 |
15.5 |
1.25 |
21.6 |
980 |
| 2×25 |
7/2.14 |
0.9 |
18.9 |
1.6 |
25.7 |
1410 |
| 2×35 |
7/2.52 |
0.9 |
21.2 |
1.6 |
28.0 |
1930 |
| 3 芯 |
| 3×1.5 |
7/0.53 |
0.7 |
9.0 |
0.9 |
14.4 |
390 |
| 3×2.5 |
7/0.67 |
0.7 |
9.9 |
0.9 |
15.3 |
450 |
| 3×4 |
7/0.85 |
0.7 |
11.0 |
0.9 |
16.4 |
540 |
| 3×6 |
7/1.04 |
0.7 |
11.6 |
1.25 |
17.7 |
745 |
| 3×10 |
7/1.35 |
0.7 |
14.3 |
1.25 |
20.4 |
950 |
| 3×16 |
7/1.70 |
0.7 |
16.5 |
1.25 |
23.0 |
1250 |
| 3×25 |
7/2.14 |
0.9 |
20.2 |
1.6 |
27.0 |
1840 |
| 3×35 |
7/2.52 |
0.9 |
22.4 |
1.6 |
29.2 |
2050 |
| 3×50 |
19/1.78 |
1.0 |
24.2 |
1.6 |
31.2 |
2590 |
| 3×70 |
19/2.14 |
1.1 |
28.2 |
2.0 |
36.2 |
3560 |
| 3×95 |
19/2.52 |
1.1 |
31.7 |
2.0 |
40.1 |
4590 |
| 3×120 |
37/2.03 |
1.2 |
36.0 |
2.0 |
44.6 |
5810 |
| 3×150 |
37/2.25 |
1.4 |
39.5 |
2.5 |
49.5 |
6920 |
| 3×185 |
37/2.52 |
1.6 |
43.3 |
2.5 |
53.5 |
8340 |
| 3×240 |
61/2.25 |
1.7 |
48.4 |
2.5 |
59.0 |
10450 |
| 3×300 |
61/2.52 |
1.8 |
54.4 |
2.5 |
65.4 |
12700 |
| 3×400 |
61/2.85 |
2.0 |
57.8 |
2.5 |
70.0 |
15326 |
|
| 3 芯 + 1 芯 Earth 导体 |
| 3×10/6 |
7/1.35 |
0.7 |
17.6 |
1.25 |
20.1 |
1042 |
| 3×16/10 |
7/1.70 |
0.7 |
20.6 |
1.25 |
22.5 |
1567 |
| 3×25/10 |
7/2.14 |
0.9 |
26.3 |
1.25 |
23.6 |
2091 |
| 3×25/16 |
7/2.14 |
0.9 |
26.6 |
1.25 |
25.8 |
2150 |
| 3×35/16 |
19/1.53 |
0.9 |
26.8 |
1.6 |
27.7 |
2390 |
| 3×35/25 |
19/1.53 |
0.9 |
27.2 |
1.6 |
28.6 |
2505 |
| 3×50/16 |
19/1.78 |
1 |
28.5 |
1.6 |
29.8 |
2916 |
| 3×50/25 |
19/1.78 |
1 |
29.2 |
1.6 |
31.3 |
3107 |
| 3×50/35 |
19/1.78 |
1 |
30.0 |
1.6 |
32.0 |
3175 |
| 3×70/25 |
19/2.14 |
1.1 |
34.0 |
2.0 |
35.0 |
3203 |
| 3×70/35 |
19/2.14 |
1.1 |
34.5 |
2.0 |
35.9 |
4067 |
| 3×70/50 |
19/2.14 |
1.1 |
35 |
2.0 |
36.8 |
4310 |
| 3×95/16 |
19/2.52 |
1.1 |
36.3 |
2.0 |
38.0 |
4856 |
| 3×95/25 |
19/2.52 |
1.1 |
36.7 |
2.0 |
39.3 |
5047 |
| 3×95/35 |
19/2.52 |
1.1 |
37.2 |
2.0 |
40.2 |
5115 |
| 3×95/50 |
19/2.52 |
1.1 |
37.6 |
2.0 |
41.4 |
5289 |
| 3×120/35 |
37/2.03 |
1.2 |
39.4 |
2.5 |
44.0 |
6160 |
| 3×120/50 |
37/2.03 |
1.2 |
39.9 |
2.5 |
44.9 |
6473 |
| 3×120/70 |
37/2.03 |
1.2 |
40.3 |
2.5 |
45.6 |
6793 |
| 3×120/95 |
37/2.03 |
1.2 |
41.2 |
2.5 |
46.8 |
7120 |
| 3×150/50 |
37/2.25 |
1.4 |
45.0 |
2.5 |
49.7 |
7549 |
| 3×150/50 |
37/2.25 |
1.4 |
45.2 |
2.5 |
49.8 |
7565 |
| 3×150/95 |
37/2.25 |
1.4 |
45.5 |
2.5 |
50.8 |
8196 |
| 3×150/120 |
37/2.25 |
1.4 |
46.0 |
2.5 |
51.8 |
8590 |
| 3×185/70 |
37/2.52 |
1.6 |
50.4 |
2.5 |
54.0 |
8950 |
| 3×185/95 |
37/2.52 |
1.6 |
50.6 |
2.5 |
54.7 |
9573 |
| 3×185/120 |
37/2.52 |
1.6 |
51.0 |
2.5 |
55.8 |
9968 |
| 3×185/150 |
37/2.52 |
1.6 |
51.6 |
2.5 |
56.6 |
1023 |
| 3×240/70 |
61/2.25 |
1.7 |
57.0 |
2.5 |
56.0 |
11294 |
| 3×240/95 |
61/2.25 |
1.7 |
58.0 |
2.5 |
57.9 |
11620 |
| 3×240/120 |
61/2.25 |
1.7 |
59.0 |
2.5 |
61.0 |
12015 |
| 3×240/150 |
61/2.25 |
1.7 |
60.0 |
2.5 |
62.2 |
12373 |
| 3×300/95 |
61/2.52 |
1.8 |
63 |
2.5 |
64.7 |
13803 |
| 3×300/120 |
61/2.52 |
1.8 |
64.2 |
2.5 |
65.9 |
14197 |
| 3×300/150 |
61/2.52 |
1.8 |
65.7 |
2.5 |
66.8 |
14556 |
| 3×300/185 |
61/2.52 |
1.8 |
66.4 |
2.5 |
68.1 |
15015 |
| 3×300/240 |
61/2.52 |
1.8 |
67 |
2.5 |
69.4 |
15697 |
| 4 芯 |
| 4×1.5 |
7/0.53 |
0.7 |
10.0 |
0.9 |
15.4 |
430 |
| 4×2.5 |
7/0.67 |
0.7 |
10.8 |
0.9 |
16.2 |
505 |
| 4×4 |
7/0.85 |
0.7 |
12.1 |
0.9 |
17.5 |
710 |
| 4×6 |
7/1.04 |
0.7 |
13.5 |
1.25 |
19.6 |
855 |
| 4×10 |
7/1.35 |
0.7 |
15.7 |
1.25 |
21.8 |
1120 |
| 4×16 |
7/1.70 |
0.7 |
18.2 |
1.6 |
25.0 |
1600 |
| 4×25 |
7/2.14 |
0.9 |
22.4 |
1.6 |
29.2 |
2160 |
| 4×35(S) |
7/2.52 |
0.9 |
24.4 |
1.6 |
31.4 |
2560 |
| 4×50(S) |
19/1.78 |
1.0 |
28.0 |
1.6 |
35.2 |
3180 |
| 4×70(S) |
19/2.14 |
1.1 |
32.2 |
2.0 |
40.6 |
4490 |
| 4×95(S) |
19/2.52 |
1.1 |
36.0 |
2.0 |
44.6 |
5725 |
| 4×120(S) |
37/2.03 |
1.2 |
38.0 |
2.5 |
50.0 |
7550 |
| 4×150(S) |
37/2.25 |
1.4 |
42.8 |
2.5 |
53.0 |
8555 |
| 4×185(S) |
37/2.52 |
1.6 |
48.4 |
2.5 |
59.0 |
10560 |
| 4×240(S) |
61/2.25 |
1.7 |
55.0 |
2.5 |
66.0 |
13180 |
| 4×300(S) |
61/2.52 |
1.8 |
59.6 |
2.5 |
71.0 |
16100 |
| 4×400(S) |
61/2.85 |
2.0 |
66.1 |
3.15 |
79.4 |
20715 |
| 4×500(S) |
61/3.20 |
2.2 |
74.6 |
3.15 |
88.5 |
25347 |
|
| 4 芯 + 1 芯 Earth 导体 |
| 4×10/6 |
7/1.35 |
0.7 |
17.6 |
1.25 |
26.1 |
1362 |
| 4×16/10 |
7/1.70 |
0.7 |
20.6 |
1.25 |
27.3 |
1473 |
| 4×25/10 |
7/2.14 |
0.7 |
26.3 |
1.25 |
32.6 |
1680 |
| 4×25/16 |
7/2.14 |
0.7 |
26.6 |
1.25 |
33.4 |
2012 |
| 4×35/16 |
19/1.53 |
0.9 |
25.6 |
1.6 |
44.5 |
2940 |
| 4×35/25 |
19/1.53 |
0.9 |
26.2 |
1.6 |
46.2 |
3050 |
| 4×50/16 |
19/1.78 |
1 |
28.5 |
1.6 |
48.2 |
3560 |
| 4×50/25 |
19/1.78 |
1 |
29.2 |
1.6 |
49.9 |
3670 |
| 4×50/35 |
19/1.78 |
1 |
30.0 |
1.6 |
42.5 |
3759 |
| 4×70/25 |
19/2.14 |
1.1 |
34 |
2.0 |
55.1 |
4980 |
| 4×70/35 |
19/2.14 |
1.1 |
34.5 |
2.0 |
44.9 |
5036 |
| 4×70/50 |
19/2.14 |
1.1 |
35 |
2.0 |
45.9 |
5468 |
| 4×95/16 |
19/2.52 |
1.1 |
36.3 |
2.0 |
47.3 |
6105 |
| 4×95/25 |
19/2.52 |
1.1 |
36.7 |
2.0 |
49.0 |
6215 |
| 4×95/35 |
19/2.52 |
1.1 |
37.2 |
2.0 |
50.1 |
6325 |
| 4×95/50 |
19/2.52 |
1.1 |
37.6 |
2.0 |
51.7 |
6455 |
| 4×120/35 |
37/2.03 |
1.2 |
39.4 |
2.5 |
54.2 |
7968 |
| 4×120/50 |
37/2.03 |
1.2 |
39.9 |
2.5 |
56.9 |
8280 |
| 4×120/70 |
37/2.03 |
1.2 |
40.3 |
2.5 |
57.9 |
8511 |
| 4×120/95 |
37/2.03 |
1.2 |
41.2 |
2.5 |
61.2 |
8790 |
| 4×150/70 |
37/2.25 |
1.4 |
45.2 |
2.5 |
56.5 |
8879 |
| 4×150/95 |
37/2.25 |
1.4 |
45.5 |
2.5 |
57.6 |
10179 |
| 4×150/120 |
37/2.25 |
1.4 |
46.0 |
2.5 |
58.7 |
10739 |
| 4×185/70 |
37/2.52 |
1.6 |
50.4 |
2.5 |
62.0 |
11200 |
| 4×185/95 |
37/2.52 |
1.6 |
50.6 |
2.5 |
63.2 |
1263 |
| 4×185/120 |
37/2.52 |
1.6 |
51.0 |
2.5 |
64.2 |
13050 |
| 4×185/150 |
37/2.52 |
1.6 |
51.6 |
2.5 |
65.4 |
13680 |
| 4×240/70 |
61/2.25 |
1.7 |
57 |
2.5 |
66.9 |
14140 |
| 4×240/95 |
61/2.25 |
1.7 |
58 |
2.5 |
68.7 |
14420 |
| 4×240/120 |
61/2.25 |
1.7 |
59.0 |
2.5 |
72.8 |
14763 |
| 4×240/150 |
61/2.25 |
1.7 |
60.0 |
2.5 |
73.1 |
15241 |
| 4×300/95 |
61/2.52 |
1.8 |
63 |
2.5 |
74.6 |
17467 |
| 4×300/120 |
61/2.52 |
1.8 |
64.2 |
2.5 |
75.1 |
18050 |
| 4×300/150 |
61/2.52 |
1.8 |
65.7 |
2.5 |
76.4 |
18662 |
| 4×300/185 |
61/2.52 |
1.8 |
67 |
2.5 |
77.3 |
19031 |
| 4×300/240 |
61/2.52 |
1.8 |
67 |
2.5 |
78.6 |
19878 |
|
| 5 芯 |
| 5×1.5 |
7/0.53 |
0.7 |
9.9 |
0.9 |
18.6 |
537 |
| 5×2.5 |
7/0.67 |
0.7 |
10.8 |
0.9 |
19.6 |
631 |
| 5×4 |
7/0.85 |
0.7 |
12.1 |
0.9 |
21.2 |
860 |
| 5×6 |
7/1.04 |
0.7 |
15.8 |
1.5 |
23.7 |
1036 |
| 5×10 |
7/1.35 |
0.7 |
24 |
2.8 |
26.0 |
1358 |
| 5×16 |
7/1.70 |
0.7 |
27 |
2.8 |
30.0 |
1940 |
| 5×25 |
7/2.14 |
0.9 |
34 |
2.8 |
35.4 |
2619 |
| 5×35 |
19/1.53 |
0.9 |
24.4 |
1.6 |
38.1 |
3140 |
| 5×50 |
19/1.78 |
1 |
28.0 |
1.6 |
42.6 |
3555 |
| 5×70 |
19/2.14 |
1.1 |
32.2 |
2.0 |
49.2 |
5444 |
| 5×95 |
19/2.52 |
1.1 |
36.0 |
2.0 |
54.1 |
6941 |
| 5×120 |
37/2.03 |
1.2 |
38.0 |
2.5 |
60.6 |
9154 |
| 5×150 |
37/2.25 |
1.4 |
42.8 |
2.5 |
64.3 |
10372 |
| 5×185 |
37/2.52 |
1.6 |
48.4 |
2.5 |
71.5 |
12828 |
| 5×240 |
61/2.25 |
1.7 |
55.0 |
2.5 |
80 |
15980 |
| 5×300 |
61/2.52 |
1.8 |
59.6 |
2.5 |
86.1 |
19521 |
| 5×400 |
61/2.85 |
2 |
66.1 |
3.15 |
96.3 |
25116 |
| 7 芯 |
| 7×1.5 |
7/0.53 |
0.7 |
11.2 |
0.9 |
16.0 |
490 |
| 7×2.5 |
7/0.67 |
0.7 |
12.4 |
0.9 |
17.2 |
602 |
| 7×4 |
7/0.85 |
0.7 |
14.1 |
1.25 |
19.8 |
871 |
| 10 芯 |
| 10×1.5 |
7/0.53 |
0.7 |
14.3 |
1.25 |
20.0 |
761 |
| 10×2.5 |
7/0.67 |
0.7 |
15.9 |
1.25 |
21.8 |
943 |
| 10×4 |
7/0.85 |
0.7 |
18.5 |
1.25 |
24.4 |
1213 |
| 12 芯 |
| 12×1.5 |
7/0.53 |
0.7 |
14.8 |
1.25 |
20.5 |
827 |
| 12×2.5 |
7/0.67 |
0.7 |
16.5 |
1.25 |
22.4 |
1020 |
| 12×4 |
7/0.85 |
0.7 |
19.1 |
1.6 |
25.7 |
1462 |
| 19 芯 |
| 19×1.5 |
7/0.53 |
0.7 |
17.4 |
1.6 |
24.0 |
1186 |
| 19×2.5 |
7/0.67 |
0.7 |
19.9 |
1.6 |
26.7 |
1498 |
| 19×4 |
7/0.85 |
0.7 |
22.6 |
1.6 |
29.4 |
1931 |
| 27 芯 |
| 27×1.5 |
7/0.53 |
0.7 |
21.3 |
1.6 |
28.1 |
1537 |
| 27×2.5 |
7/0.67 |
0.7 |
23.9 |
1.6 |
30.9 |
1933 |
| 27×4 |
7/0.85 |
0.7 |
27.2 |
1.6 |
34.4 |
2532 |
| 37 芯 |
| 37×1.5 |
7/0.53 |
0.7 |
23.9 |
1.6 |
30.7 |
1856 |
| 37×2.5 |
7/0.67 |
0.7 |
26.9 |
1.6 |
33.9 |
2372 |
| 37×4 |
7/0.85 |
0.7 |
31.1 |
2.0 |
39.3 |
3448 |
| 48 芯 |
| 48×1.5 |
7/0.53 |
0.7 |
27.5 |
1.6 |
34.6 |
2276 |
| 48×2.5 |
7/0.67 |
0.7 |
31.3 |
2.0 |
39.6 |
3252 |
| 48×4 |
7/0.85 |
0.7 |
35.7 |
2.0 |
44.2 |
4273 |
注：其他导体规格可根据客户需求。
电气性能
载流容量 (Amp)
| 导体截面积 |
参考方法1（直接用夹子夹住） |
参考方法11（在一个有孔径的电缆匣中，垂直或者水平） |
单根管道 |
地下直埋 |
| 2根电缆单相交流或者直流电电缆水平分开或者紧挨着 |
3根或者4 根电缆三相交流电电缆水平分开或者紧挨着 |
2根电缆单相交流或者直流电缆水平分开或者紧挨 |
3根或者4根电缆三相交流电电缆水平分开或者紧挨着 |
2根电缆单 相交流或者直流电电缆水平分开或者紧挨着 |
3根或者4 根电缆三相交流电电缆水平分开或者紧挨着 |
2根电缆单相交流或者直流电电缆水平分开或者紧挨着 |
3根或者4根电缆三相交流电电缆水平分开或者紧挨着 |
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
| mm² |
A |
A |
A |
A |
A |
A |
A |
A |
| 1.5 |
27 |
23 |
29 |
25 |
- |
23 |
- |
28 |
| 2.5 |
36 |
31 |
39 |
33 |
- |
30 |
- |
36 |
| 4 |
49 |
42 |
52 |
44 |
- |
40 |
- |
48 |
| 6 |
62 |
53 |
66 |
56 |
- |
50 |
- |
60 |
| 10 |
85 |
73 |
90 |
78 |
- |
65 |
- |
80 |
| 16 |
110 |
94 |
115 |
99 |
115 |
94 |
140 |
115 |
| 25 |
146 |
124 |
152 |
131 |
145 |
125 |
180 |
150 |
| 35 |
180 |
154 |
188 |
162 |
175 |
150 |
215 |
180 |
| 50 |
219 |
187 |
228 |
197 |
210 |
175 |
255 |
215 |
| 70 |
279 |
238 |
291 |
251 |
260 |
215 |
315 |
265 |
| 95 |
338 |
289 |
354 |
304 |
310 |
260 |
380 |
315 |
| 120 |
392 |
335 |
410 |
353 |
355 |
300 |
430 |
360 |
| 150 |
451 |
386 |
472 |
406 |
400 |
335 |
480 |
405 |
| 185 |
515 |
441 |
539 |
463 |
455 |
380 |
540 |
460 |
| 240 |
607 |
520 |
636 |
546 |
520 |
440 |
630 |
530 |
| 300 |
698 |
599 |
732 |
628 |
590 |
495 |
700 |
590 |
| 400 |
787 |
673 |
847 |
728 |
660 |
560 |
790 |
670 |
电压降（A/M）
| 导体截面积 |
2根电缆直流电 |
2根电缆单相交流电 |
3根或者4根三相交流电 |
2根电缆单相交流电 |
3根或者4根三相交流电 |
| 管道或地埋 |
管道或地埋 |
| 1 |
2 |
3 |
4 |
5 |
6 |
| mm² |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
| 1.5 |
31.0 |
31.0 |
27.0 |
31.0 |
25.0 |
| 2.5 |
19.0 |
19.0 |
16.0 |
19.0 |
15.0 |
| 4 |
12.0 |
12.0 |
10.0 |
12.0 |
9.7 |
| 6 |
7.9 |
7.9 |
6.8 |
7.9 |
6.5 |
| 10 |
4.7 |
4.7 |
4.0 |
4.7 |
3.9 |
| 16 |
2.9 |
2.9 |
2.5 |
2.9 |
2.6 |
|
|
r |
x |
z |
r |
x |
z |
|
|
| 25 |
1.850 |
1.350 |
0.160 |
1.900 |
1.600 |
0.140 |
1.650 |
1.900 |
1.600 |
| 35 |
1.350 |
1.350 |
0.155 |
1.350 |
1.150 |
0.135 |
1.150 |
1.350 |
1.200 |
| 50 |
0.980 |
0.990 |
0.155 |
1.000 |
0.860 |
0.135 |
0.870 |
1.000 |
0.870 |
| 70 |
0.670 |
0.670 |
0.150 |
0.690 |
0.590 |
0.130 |
0.600 |
0.690 |
0.610 |
| 95 |
0.490 |
0.500 |
0.150 |
0.520 |
0.430 |
0.130 |
0.450 |
0.520 |
0.450 |
| 120 |
0.390 |
0.400 |
0.145 |
0.420 |
0.340 |
0.130 |
0.370 |
0.420 |
0.360 |
| 150 |
0.310 |
0.320 |
0.145 |
0.350 |
0.280 |
0.125 |
0.300 |
0.350 |
0.300 |
| 185 |
0.250 |
0.260 |
0.145 |
0.290 |
0.220 |
0.125 |
0.260 |
0.290 |
0.250 |
| 240 |
0.195 |
0.200 |
0.140 |
0.240 |
0.175 |
0.125 |
0.210 |
0.240 |
0.210 |
| 300 |
0.155 |
0.160 |
0.140 |
0.210 |
0.140 |
0.120 |
0.185 |
0.210 |
0.190 |
| 400 |
0.120 |
0.130 |
0.140 |
0.190 |
0.115 |
0.120 |
0.165 |
0.190 |
0.180 |
注:
r = 操作温度下导体电阻
x = 电抗
z = 阻抗
