M81381/13
Application and Description
These FEP/polyimide/FEP tape insulated single-core M81381/13 cables are used in aerospace
applications and other challenging applications. It is well-suited to applications concerned with smoke
emission and overload stability.

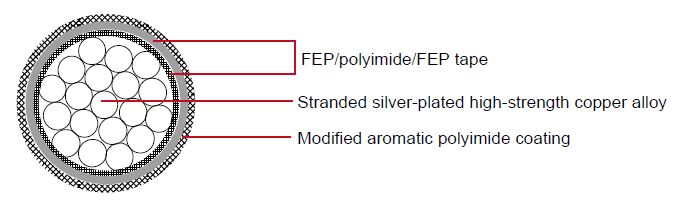

Construction
| Conductor |
Stranded silver-plated high-strength copper alloy conductor |
| Insulation |
FEP/polyimide/FEP tape insulation |
| Insulation Wall Thickness |
0.0065” |
| Jacket |
modified aromatic polyimide coating |
Characteristics
| Temperature Range |
-55°C + 200°C |
| Voltage Rating |
600 volts |
| Color Code |
MIL-STD-104 (See page 42 )
10 basic colors(BLK,BRN,RED,ORN,YEL,GRN,BLU,VIO,GRY,WHT) |
Dimensions and Weight
AWG
Size |
Conductor Stranding |
Conductor Diam.
Max. |
Conductor Diam.
Min. |
Max. O.D. |
Min. O.D. |
Maximum Resistance (Ohm/1000' @ 20°C) |
Approx
LBS/MFT |
| |
|
in |
mm |
in |
mm |
in |
mm |
in |
mm |
|
|
| 28 |
7/36 |
0.015 |
0.380 |
0.014 |
0.350 |
0.035 |
0.889 |
0.031 |
0.787 |
74.40 |
1.2 |
| 26 |
19/38 |
0.020 |
0.510 |
0.018 |
0.460 |
0.040 |
1.016 |
0.036 |
0.914 |
44.80 |
1.3 |
| 24 |
19/36 |
0.024 |
0.610 |
0.023 |
0.580 |
0.045 |
1.143 |
0.041 |
1.041 |
28.40 |
1.9 |
| 22 |
19/34 |
0.031 |
0.790 |
0.029 |
0.740 |
0.051 |
1.295 |
0.047 |
1.194 |
17.50 |
2.8 |
| 20 |
19/32 |
0.039 |
0.990 |
0.037 |
0.940 |
0.060 |
1.524 |
0.059 |
1.499 |
10.70 |
4.2 |
