DeviceNet™
Application:
Device Net™ communication link is based on proven CAN technology.
DeviceNet™ is a bus system developed by Allen Bradley (Rokwell Automation).
These cables are used to interconnect various industrial devices, such as SPS controls or limit switches. The special characteristic of this bus system is that a data pair and a power supply pair are integrated in one cable.

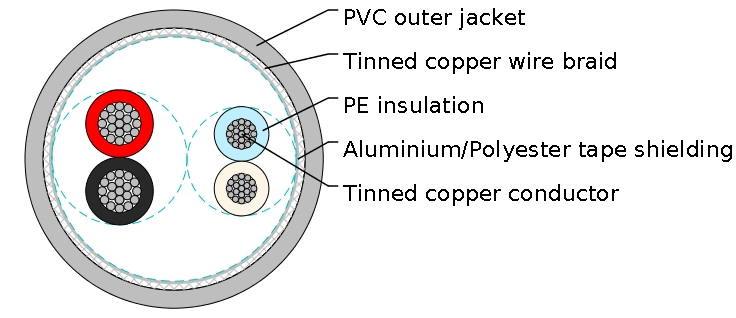

Construction:
| Type/Area of Application |
DeviceNet Drag(Thin) |
DeviceNet Trunk(Thick) |
| Cable Construction |
1x2x 0.24mm2+1x2x0.38mm2 |
1x2x0.96mm2 +1x2x1.53mm2 |
| Inner Conductor Diameter 1 |
Copper, tinned (AWG 24/19) |
Copper, tinned (AWG 18/19) |
| Inner Conductor Diameter 2 |
Copper, bare (AWG 22/19) |
Copper, tinned (AWG 15/19) |
| Conductor Insulation 1 |
Foam-skin-PE/PE |
Foam-skin-PE/PE |
| Conductor Insulation 2 |
PVC/ PE |
PVC/ PE |
| Conductor Colors 1 |
light blue, white |
light blue, white |
| Conductor Colors 2 |
red, black |
red, black |
| Stranding Element |
Double conductor |
Double conductor |
| Shielding |
Polyester foil, aluminum-lined |
Polyester foil, aluminum-lined |
| Drain Wire |
yes |
yes |
| Total Shielding |
Copper braid, tinned |
Copper braid, tinned |
| Outer Jacket Material |
PVC/ PUR/ PE/ FRNC |
PVC/ PUR/ PE/ FRNC |
| Outer Cable Diameter |
7.0 mm ± 0.3 mm |
12.0 mm ± 0.3 mm |
| Outer Jacket Color |
Grey/ Violet/ Yellow |
Grey/ Violet/ Yellow |
| For armored cable |
| Inner Jacket Material |
PVC/PUR/PE/FRNC |
PVC/PUR/PE/FRNC |
| Armor |
SWA/SWB |
SWA/SWB |
Outer Jacket Material
|
PVC/PUR/PE/FRNC |
PVC/PUR/PE/FRNC |
| Outer Cable Diameter |
Min.10.5mm |
Min.16.0mm |
Outer Jacket Color
|
GreylViolet/Yellow |
GreylViolet/ Yellow |
Fire resistant Device Net™ cables can also be provided upon request.
Electrical Data:
| Characteristic Impedance@1MHz |
120 Ω ± 10Ω |
120 Ω ± 10Ω |
| Conductor Resistance |
45 Ohm/km max. |
180.0 Ohm/km max. |
| Insulation Resistance |
0.20 GOhm x km min. |
0.20 GOhm x km min. |
| Mutual Capacitance@800MHz |
39.8 nF/km nom. |
39.8 nF/km nom. |
| Working Voltage |
Max: 300V |
Max: 300V |
| Test Voltage |
2.0 KV |
2.0 KV |
| Data Rate |
125 Kbit/s |
500m |
125 Kbit/s |
100m |
| 250 Kbit/s |
250m |
250 Kbit/s |
100m |
| 500 Kbit/s |
100m |
500 Kbit/s |
100m |
| Attenuation: |
125 |
KHz |
< |
0.42 |
dB/100m |
125 |
KHz |
< |
0.95 |
dB/100m |
| 500 |
KHz |
< |
0.81 |
dB/100m |
500 |
KHz |
< |
1.64 |
dB/100m |
| 1 |
MHz |
< |
1.26 |
dB/100m |
1 |
MHz |
< |
2.38 |
dB/100m |
Technical Data:
| Weight: |
approximately 195.0 kg/km |
approximately 69.0 kg/km |
| Min. Bending Radius (Laying): |
10 x OD mm |
10 x OD mm |
| Operating Temp.Range, min.: |
- 20 °C |
- 20 °C |
| Operating Temp.Range, max.: |
+80 °C |
+80 °C |
