VG 95218 Navy Cables
LFMSGSGO Light weight Ships Telecommunications Cables acc. to VG 95218 part 65

Application

These cables are designed for fixed installation in electrial power and control systems below and above deck, preferably on ships of the German Navy and/or German design of construction. Not intended for permanent installation in or under water. Fulfill all requirements of BV3400 (Specification for Construction of German Navy vessels).

Standards

VG 95218-65
VG 95218-2
IEC 60228
VDE 0207-22

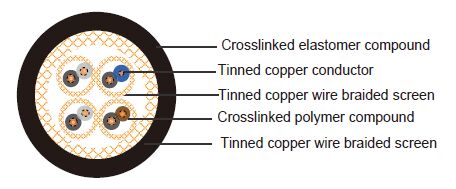

Construction

Conductor: Tinned copper conductor, stranded class 2
Insulation: Crosslinked polymer compound
Pair Screen：Tinned copper wire braided screen, separator tape (optional)
Overall Screen: Tinned copper wire braided screen, separator tape (optional)
Sheath: crosslinked elastomer compound, black.

Core Identification1

1) Core and pair marking cable type A In each layer
1Pair: Black, Blue (Pilot pair)
2Pair: Black, Brown (Direction pair)
3Pair and others: Black, Grey
※ Pilot and direction shall be the same in all layers

2) Core and pair marking cable type B
Cores in each pair: Black, White
1Pair with 1.2mm²: Red
2Pair with 1.2mm²: Green
3Pair with 1.2mm²: Nature
In each layer:
1Pair with 0.25mm²: Red
2Pair with 0.25mm²: Green
3Pair with 1.2mm²: Nature

3) Core and quad marking, cable type C
1Quad: Black, white, grey blue, filler strip: red (Pilot quad)
2Quad: Black, white, grey blue, filler strip: red (Direction quad)
3Quad and others: Black, white, grey blue
※ Pilot and direction shall be the same in all layers

Electrical and mechanical characteristics

Nominal Voltage:250V
Max. operating voltage: AC 250 V DC 355 V
Operating temperature at conductor: + 85 °C

Dimensions and Weight

LFMSGSGO Type A

Nomenclature acc. VG 95218  Part 65 Type/Part No.	Number of cores and  nominal cross section  mm²	Nominal Diameter  of conductor  mm	Nominal insulation  thickness  mm	Nominal sheath  thickness mm	Outer diameters  min. /max. mm		Cable Weight  kg/km
A001	2x2x0.4	0.85	0.2	0.8	9.3	10.5	140
A002	4x2x0.4	0.85	0.2	0.8	10	11.3	195
A003	7x2x0.4	0.85	0.2	0.9	12	13.5	290
A004	12x2x0.4	0.85	0.2	1	15.5	17	460
A005	19x2x0.4	0.85	0.2	1	18.4	20.4	650
A006	27x2x0.4	0.85	0.2	1.1	22.5	24.5	920

LFMSGSGO Type B

Nomenclature acc. VG 95218  Part 65 Type/Part No.	Number of cores and  nominal cross section  mm²	Nominal Diameter  of conductor  mm	Nominal insulation thickness  mm	Nominal sheath thickness  mm	Outer diameters  min. /max. mm		Cable Weight kg/km
B001	3x2x1.2 +	1.5	0.25	1.2	20	22.2	750
	18x2x0.25	0.65	0.2	1.2

LFMSGSGO Type C Cable, operating voltage up to AC 250V, DC 355V, operating temperature up to 85℃

Nomenclature acc. VG 95218  Part 65 Type/Part No.	Number of cores and  nominal cross section  mm²	Nominal Diameter  of conductor  mm	Nominal insulation  thickness  mm	Nominal sheath  thickness mm	Outer diameters  min. /max.  mm		Cable Weight  kg/km
C001	27x4x0.25	0.21	0.2	1.2	22	26	1000
