VG 95218 Navy Cables
FMSGSGO Ships Telecommunications Cables acc. to VG 95218 part 63

Application

These cables are designed for fixed installation in electrial power and control systems below and above deck, preferably on ships of the German Navy and/or German design of construction. Not intended for permanent installation in or under water. Fulfill all requirements of BV3400 (Specification for Construction of German Navy vessels).

Standards

VG 95218-63
VG 95218-2
IEC 60228

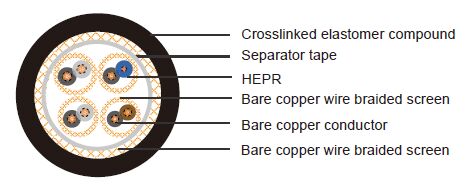

Construction

Conductor: Bare copper conductor, stranded class 2
Insulation: HEPR
Pair Screen：Bare copper wire braided screen, separator tape (optional)
Overall Screen: Bare copper wire braided screen, separator tape
Sheath: crosslinked elastomer compound, black.

Core Identification1

- 2 paired cable (1 Quad)
1 pair: Black, Blue
2 pair: Black, Brown
- 4 paired to 24 paired cables in each layer
1 pair: Black/Blue (pilot pair)
2 pair: Black/Brown (direction pair)
3 pair and others: Black/Grey
※ Pilot and direction shall be the same in all layers .

Electrical and mechanical characteristics

Nominal Voltage:250V
Max. operating voltage: AC 250 V DC 355 V
Operating temperature at conductor: + 85 °C

Dimensions and Weight

FMSGSGO Type A

Nomenclature acc. VG 95218  Part 63 Type/Part No.	Number of cores and  nominal cross section  mm²	Nominal Diameter  of conductor mm	Nominal insulation thickness mm	Nominal sheath thickness  mm	Outer diameters  min. /max. mm		Cable Weight  kg/km
A001	2x2x0.75	1.2	0.4	0.8	11.1	12.5	220
A002	4x2x0.75	1.2	0.4	1.0	12.9	14.5	330
A003	7x2x0.75	1.2	0.4	1.0	14.9	16.4	470
A004	11x2x0.75	1.2	0.4	1.2	19.6	21.4	700
A005	14x2x0.75	1.2	0.4	1.2	20.8	22.8	890
A006	19x2x0.75	1.2	0.4	1.4	23.4	25.4	1120
A007	24x2x0.75	1.2	0.4	1.4	26.4	28.4	1420
