VG 95218 Navy Cables
FMGSGO Ships Telecommunications Cables acc. to VG 95218 part 62

Application

These cables are designed for fixed installation in electrial power and control systems below and above deck, preferably on ships of the German Navy and/or German design of construction. Not intended for permanent installation in or under water. Fulfill all requirements of BV3400 (Specification for Construction of German Navy vessels).

Standards

VG 95218-62
VG 95218-2
IEC 60228
DIN VDE 0207-20(VDE 0207 part 20)

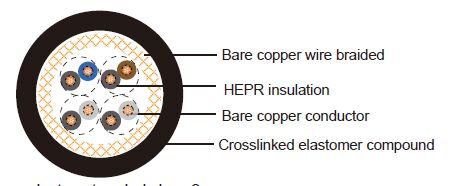

Construction

Conductor: Bare copper conductor, stranded class 2
Insulation: HEPR
Screen: Bare copper wire braided screen, separator tape (optional)
Sheath:Crosslinked elastomer compound,black.

Electrical and mechanical characteristics

Nominal Voltage:250V
Max. operating voltage: AC 250 V DC 355 V
Operating temperature at conductor: + 85 °C

Dimensions and Weight

FMGSGO Type A

Nomenclature acc. VG 95218 Part 62 Type/Part No.	Number of cores and nominal cross section mm²	Nominal Diameter of conductor mm	Nominal insulation thickness	Nominal sheath thickness mm	Outer diameters min. /max. mm		Cable Weight kg/km
A008	1x2x0.75	1.2	0.4	0.8	6.0	7.0	80
A001	2x2x0.75	1.2	0.4	0.8	6.7	7.8	95
A002	4x2x0.75	1.2	0.4	1.0	9.6	11.0	190
A003	6x2x0.75	1.2	0.4	1.0	10.8	12.3	232
A004	8x2x0.75	1.2	0.4	1.0	11.9	13.4	290
A005	10x2x0.75	1.2	0.4	1.0	13.7	15.2	330
A006	14x2x0.75	1.2	0.4	1.0	14.9	16.5	480
A007	16x2x0.75	1.2	0.4	1.0	16.1	17.9	520
