BS EN 50288-7标准
多芯XLPE绝缘,LSZH护套 & 总屏蔽仪表电缆
RE-2X(St)H 90°C / 500V
应用及描述
BS EN 50288-7标准仪表电缆用于仪表控制系统中模拟信号和数字信号的传输,根据IEC79-14分类,可用
于II组1区和2区环境中,不能直接连接在低阻抗电源,例如公共电力供应站。
推荐应用在室内和室外安装,支架,托盘,管道,干湿环境中,不推荐直埋使用。
推荐应用在生命和重要财产物资的消防防火措施中。
标准
电缆结构
防火特性
阻燃特性(单根电缆垂直燃烧测试) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
降低火蔓延(多根电缆成束垂直火焰燃烧测试)*** |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
无卤 |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
电缆燃烧腐蚀性气体零排放 |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
电缆燃烧最小烟密度 |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
电缆无毒测试 |
NES 02-713; NF C 20-454 |
抗紫外线 |
UL 1581 section 1200 |
耐油 |
ICEA S-73-532** |
备注:*为已替换的标准,***为可选标准。
额定电压

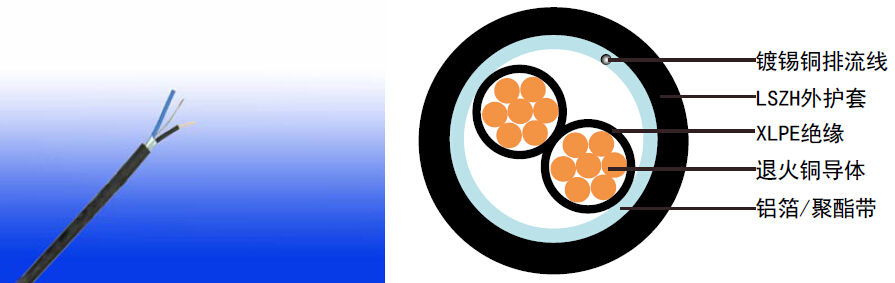

电缆结构
导体 |
IEC 60228标准2类多股退火铜导体。 |
绝缘 |
EN 50290-2-29标准挤压式XLPE复合物绝缘 |
屏蔽 |
带有0.5mm²镀锡铜排流线的铝带/聚酯带层屏蔽。 |
外护套 |
EN 50290-2-27标准LSZH复合物。防紫外线,耐烃,耐油,防啮齿和防白蚁特性都是可选的。 |
颜色
物理特性
工作温度范围(固定状态下) |
-30°C – +90°C |
安装温度范围(运动状态) |
-5°C – +50°C |
最小弯曲半径 |
7.5 X 外径 |
抗紫外线 |
UL 1581 section 1200 |
耐油 |
ICEA S-73-532(测试温度 +60°C, 持续4小时。4小时过程中,保持拉伸强度和伸长率最小值为60%。) |
电气性能
导体截面积 |
mm2 |
0.5 |
0.75 |
1 |
1.3 |
1.5 |
2.5 |
标称绝缘厚度 |
mm |
0.55 |
0.55 |
0.55 |
0.6 |
0.6 |
0.7 |
最小绝缘厚度 |
mm |
0.44 |
0.44 |
0.44 |
0.44 |
0.44 |
0.53 |
导体电阻 (20°C) |
Ω/km |
36.7 |
25 |
18.5 |
14.2 |
12.3 |
7.4 |
绝缘电阻 (20°C) |
MΩ.km(Min.) |
5000 |
交互电容 (1 kHz) |
pF/m(Max.) |
115 |
电容不平衡值(1 kHz) |
pF/500 m (Max.) |
500 |
感应系数/阻抗比例 |
μH/Ω(Max.) |
25 |
25 |
25 |
40 |
40 |
60 |
工作电压 |
V |
500 |
测试电压 Urms |
线芯之间V |
2000 |
线芯与屏蔽之间 V |
2000 |
电缆结构参数
电缆型号 |
RE-2X(St)H |
芯数×1×截面积 |
标准绝缘厚度 |
标准护套厚度 |
标称总外径 |
标称总重量 |
No.x1xmm2 |
mm |
mm |
mm |
kg/km |
0.5mm2,多芯 |
RE-2X(St)H 2C0.5 |
2x1x0.5 |
0.55 |
0.9 |
6.2 |
47 |
RE-2X(St)H 3C0.5 |
3x1x0.5 |
0.55 |
0.9 |
6.5 |
50 |
RE-2X(St)H 4C0.5 |
4x1x0.5 |
0.55 |
0.9 |
7 |
60 |
RE-2X(St)H 5C0.5 |
5x1x0.5 |
0.55 |
0.9 |
7.6 |
71 |
RE-2X(St)H 8C0.5 |
8x1x0.5 |
0.55 |
1 |
9.1 |
95 |
RE-2X(St)H 10C0.5 |
10x1x0.5 |
0.55 |
1 |
10.4 |
127 |
RE-2X(St)H 12C0.5 |
12x1x0.5 |
0.55 |
1 |
10.7 |
151 |
RE-2X(St)H 14C0.5 |
14x1x0.5 |
0.55 |
1 |
11.3 |
162 |
RE-2X(St)H 16C0.5 |
16x1x0.5 |
0.55 |
1.1 |
11.8 |
180 |
RE-2X(St)H 20C0.5 |
20x1x0.5 |
0.55 |
1.1 |
13.3 |
222 |
RE-2X(St)H 24C0.5 |
24x1x0.5 |
0.55 |
1.1 |
14.7 |
274 |
RE-2X(St)H 27C0.5 |
27x1x0.5 |
0.55 |
1.2 |
15 |
282 |
RE-2X(St)H 30C0.5 |
30x1x0.5 |
0.55 |
1.2 |
15.7 |
318 |
RE-2X(St)H 37C0.5 |
37x1x0.5 |
0.55 |
1.2 |
16.9 |
372 |
RE-2X(St)H 40C0.5 |
40x1x0.5 |
0.55 |
1.2 |
17.6 |
372 |
0.75mm2,多芯 |
RE-2X(St)H 2C0.75 |
2x1x0.75 |
0.55 |
0.9 |
6.5 |
51 |
RE-2X(St)H 3C0.75 |
3x1x0.75 |
0.55 |
0.9 |
6.9 |
62 |
RE-2X(St)H 4C0.75 |
4x1x0.75 |
0.55 |
0.9 |
7.4 |
74 |
RE-2X(St)H 5C0.75 |
5x1x0.75 |
0.55 |
0.9 |
8.1 |
96 |
RE-2X(St)H 8C0.75 |
8x1x0.75 |
0.55 |
1 |
9.7 |
126 |
RE-2X(St)H 10C0.75 |
10x1x0.75 |
0.55 |
1 |
11.1 |
156 |
RE-2X(St)H 12C0.75 |
12x1x0.75 |
0.55 |
1 |
11.5 |
183 |
RE-2X(St)H 14C0.75 |
14x1x0.75 |
0.55 |
1.1 |
12.2 |
200 |
RE-2X(St)H 16C0.75 |
16x1x0.75 |
0.55 |
1.1 |
12.9 |
224 |
RE-2X(St)H 20C0.75 |
20x1x0.75 |
0.55 |
1.1 |
14.3 |
284 |
RE-2X(St)H 24C0.75 |
24x1x0.75 |
0.55 |
1.2 |
16 |
324 |
RE-2X(St)H 27C0.75 |
27x1x0.75 |
0.55 |
1.2 |
16.3 |
363 |
RE-2X(St)H 30C0.75 |
30x1x0.75 |
0.55 |
1.2 |
16.9 |
396 |
RE-2X(St)H 37C0.75 |
37x1x0.75 |
0.55 |
1.2 |
18.2 |
472 |
RE-2X(St)H 40C0.75 |
40x1x0.75 |
0.55 |
1.3 |
19.1 |
514 |
1.0mm2,多芯 |
RE-2X(St)H 2C1.0 |
2x1x1.0 |
0.55 |
0.9 |
6.9 |
61 |
RE-2X(St)H 3C1.0 |
3x1x1.0 |
0.55 |
0.9 |
7.3 |
70 |
RE-2X(St)H 4C1.0 |
4x1x1.0 |
0.55 |
0.9 |
7.9 |
85 |
RE-2X(St)H 5C1.0 |
5x1x1.0 |
0.55 |
0.9 |
8.6 |
109 |
RE-2X(St)H 8C1.0 |
8x1x1.0 |
0.55 |
1 |
10.3 |
157 |
RE-2X(St)H 10C1.0 |
10x1x1.0 |
0.55 |
1 |
11.9 |
193 |
RE-2X(St)H 12C1.0 |
12x1x1.0 |
0.55 |
1 |
12.2 |
214 |
RE-2X(St)H 14C1.0 |
14x1x1.0 |
0.55 |
1.1 |
13 |
243 |
RE-2X(St)H 16C1.0 |
16x1x1.0 |
0.55 |
1.1 |
13.7 |
280 |
RE-2X(St)H 20C1.0 |
20x1x1.0 |
0.55 |
1.1 |
15.2 |
336 |
RE-2X(St)H 24C1.0 |
24x1x1.0 |
0.55 |
1.2 |
17 |
414 |
RE-2X(St)H 27C1.0 |
27x1x1.0 |
0.55 |
1.2 |
17.4 |
443 |
RE-2X(St)H 30C1.0 |
30x1x1.0 |
0.55 |
1.2 |
18 |
484 |
RE-2X(St)H 37C1.0 |
37x1x1.0 |
0.55 |
1.2 |
19.6 |
590 |
RE-2X(St)H 40C1.0 |
40x1x1.0 |
0.55 |
1.3 |
20.4 |
631 |
1.3mm2,多芯 |
RE-2X(St)H 2C1.3 |
2x1x1.3 |
0.6 |
0.9 |
7.4 |
69 |
RE-2X(St)H 3C1.3 |
3x1x1.3 |
0.6 |
0.9 |
7.9 |
83 |
RE-2X(St)H 4C1.3 |
4x1x1.3 |
0.6 |
0.9 |
8.5 |
105 |
RE-2X(St)H 5C1.3 |
5x1x1.3 |
0.6 |
1 |
9.5 |
135 |
RE-2X(St)H 8C1.3 |
8x1x1.3 |
0.6 |
1 |
11.2 |
186 |
RE-2X(St)H 10C1.3 |
10x1x1.3 |
0.6 |
1.1 |
13.2 |
228 |
RE-2X(St)H 12C1.3 |
12x1x1.3 |
0.6 |
1.1 |
13.6 |
269 |
RE-2X(St)H 14C1.3 |
14x1x1.3 |
0.6 |
1.1 |
14.3 |
305 |
RE-2X(St)H 16C1.3 |
16x1x1.3 |
0.6 |
1.1 |
15 |
351 |
RE-2X(St)H 20C1.3 |
20x1x1.3 |
0.6 |
1.2 |
16.9 |
423 |
RE-2X(St)H 24C1.3 |
24x1x1.3 |
0.6 |
1.2 |
18.7 |
507 |
RE-2X(St)H 27C1.3 |
27x1x1.3 |
0.6 |
1.3 |
19.3 |
558 |
RE-2X(St)H 30C1.3 |
30x1x1.3 |
0.6 |
1.3 |
20 |
611 |
RE-2X(St)H 37C1.3 |
37x1x1.3 |
0.6 |
1.3 |
21.6 |
743 |
RE-2X(St)H 40C1.3 |
40x1x1.3 |
0.6 |
1.4 |
22.7 |
796 |
1.5mm2,多芯 |
RE-2X(St)H 2C1.5 |
2x1x1.5 |
0.6 |
0.9 |
7.7 |
78 |
RE-2X(St)H 3C1.5 |
3x1x1.5 |
0.6 |
0.9 |
8.1 |
98 |
RE-2X(St)H 4C1.5 |
4x1x1.5 |
0.6 |
0.9 |
8.8 |
120 |
RE-2X(St)H 5C1.5 |
5x1x1.5 |
0.6 |
1 |
9.8 |
153 |
RE-2X(St)H 8C1.5 |
8x1x1.5 |
0.6 |
1 |
11.6 |
218 |
RE-2X(St)H 10C1.5 |
10x1x1.5 |
0.6 |
1.1 |
13.7 |
268 |
RE-2X(St)H 12C1.5 |
12x1x1.5 |
0.6 |
1.1 |
14.1 |
315 |
RE-2X(St)H 14C1.5 |
14x1x1.5 |
0.6 |
1.1 |
14.8 |
341 |
RE-2X(St)H 16C1.5 |
16x1x1.5 |
0.6 |
1.1 |
15.6 |
392 |
RE-2X(St)H 20C1.5 |
20x1x1.5 |
0.6 |
1.2 |
17.6 |
484 |
RE-2X(St)H 24C1.5 |
24x1x1.5 |
0.6 |
1.3 |
19.6 |
579 |
RE-2X(St)H 27C1.5 |
27x1x1.5 |
0.6 |
1.3 |
20.1 |
626 |
RE-2X(St)H 30C1.5 |
30x1x1.5 |
0.6 |
1.3 |
20.8 |
685 |
RE-2X(St)H 37C1.5 |
37x1x1.5 |
0.6 |
1.4 |
22.6 |
834 |
RE-2X(St)H 40C1.5 |
40x1x1.5 |
0.6 |
1.4 |
23.6 |
898 |
2.5mm2,多芯 |
RE-2X(St)H 2C2.5 |
2x1x2.5 |
0.7 |
0.9 |
8.9 |
111 |
RE-2X(St)H 3C2.5 |
3x1x2.5 |
0.7 |
1 |
9.7 |
132 |
RE-2X(St)H 4C2.5 |
4x1x2.5 |
0.7 |
1 |
10.5 |
169 |
RE-2X(St)H 5C2.5 |
5x1x2.5 |
0.7 |
1 |
11.9 |
209 |
RE-2X(St)H 8C2.5 |
8x1x2.5 |
0.7 |
1.1 |
13.9 |
321 |
RE-2X(St)H 10C2.5 |
10x1x2.5 |
0.7 |
1.2 |
16.3 |
386 |
RE-2X(St)H 12C2.5 |
12x1x2.5 |
0.7 |
1.2 |
16.9 |
447 |
RE-2X(St)H 14C2.5 |
14x1x2.5 |
0.7 |
1.2 |
17.7 |
509 |
RE-2X(St)H 16C2.5 |
16x1x2.5 |
0.7 |
1.3 |
18.9 |
585 |
RE-2X(St)H 20C2.5 |
20x1x2.5 |
0.7 |
1.3 |
21.1 |
712 |
RE-2X(St)H 24C2.5 |
24x1x2.5 |
0.7 |
1.4 |
23.6 |
855 |
RE-2X(St)H 27C2.5 |
27x1x2.5 |
0.7 |
1.4 |
24.1 |
956 |
RE-2X(St)H 30C2.5 |
30x1x2.5 |
0.7 |
1.5 |
25.2 |
1049 |
RE-2X(St)H 37C2.5 |
37x1x2.5 |
0.7 |
1.5 |
27.2 |
1277 |
RE-2X(St)H 40C2.5 |
40x1x2.5 |
0.7 |
1.6 |
28.5 |
1370 |
备注:其他规格截面积&线芯要求可根据要求定制。
